水晶灯箱安装使用说明书
Light box Setup and use instructions
一：安全说明 Safety Instructions
二：灯箱剖析图 Light Box's Profile chart
三：安装步骤 Installation's steps
四：常见问题的解决方法 Common problems and solutions
五：警告、注意 Warning、 Attention
六：产品认证 Certifications
使用产品前请详细阅读并注意以下安全防范以确保正确使用本产品
Please read the instructions carefully before using the product
一：安全说明（Safety Instructions）
为了让您更放心和有效地使用本公司的产品，请由专业人员安装本产品
环境---不要在高温（40℃以上）、潮湿（80%以上）的地方使用。
电源---接通电源前，请检查产品所标示电压（见灯箱背面）是否与该场地电压相符，切勿超负荷使用。
清洁---本产品耐磨力为2h，清洁时注意勿用微粒清洁产品及腐蚀性清洁产品。
In order to effectively and correctly use of our products, please install the products from the professionals
Environment--- Do not use the light box above temperature (over40℃ )and humidity (over80%) of the places.
Power--- Please check whether the product voltage (back of light box) is the same to the place voltage before switch on . Do not overload.
Cleaning—2h abrasive resistance, Do not use particle cleaning product and corrosiveness product .

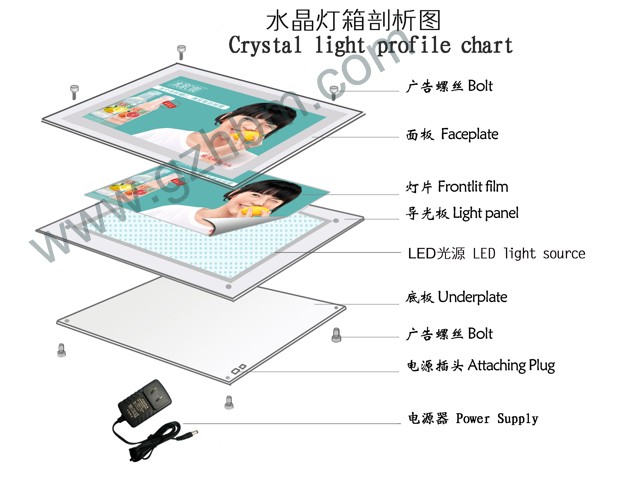

二：水晶灯箱剖析图（Light Box's Profile chart）

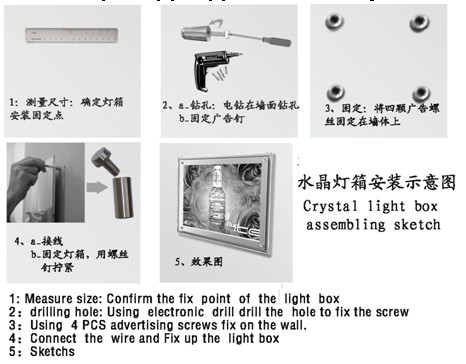

三：安装步骤（附图）
1、确定灯箱安装的位置，根据实际情况和灯箱品种，确定安装方法。
2、测量尺寸： 根据灯箱背面的安装孔位置或现场实际尺寸来确定安装广告灯箱的固定点。
3、接线： 正常灯箱电源线的出口端在背面，(自配有电源线)，直接接入电源即可。
4、固定灯箱：把灯箱的上盖打开，对正固定点安装（即用电钻在灯箱底座电源线位置钻孔，用水平尺调整成水平状态）；
5、 通电亮灯，清洁灯箱表面即可。
6、定期检查灯箱，延长灯箱使用寿命
7、导光板超薄灯箱采用电子镇流器，易产生感应电，安装时注意接好地线以示安全。
Installation’s steps (with photos)
1.Conform the location of installation of light boxes, according to the actual situations to determine the installation’s methods.
2. Measure size :According to the place and the light box size，measure the installation's size.
3. Connect wire: Normally the exit end of the power line are at the back of the light box ,( power line included ),connect the power.
4. Fix the light-box Open the front cover of the light box, match the assembling point. Using electronic drill drill the hole at the back oft the power line position, fix the new power line,use the ruler to keep it is straight
5. Switch on and clean the light box surface.
6.Please do the periodical inspection then could prolong light box using life.
7.LGP of light box adopt to electronic ballast ,can easy make the electric induction. For your safety ,please pay attention to connect the ground

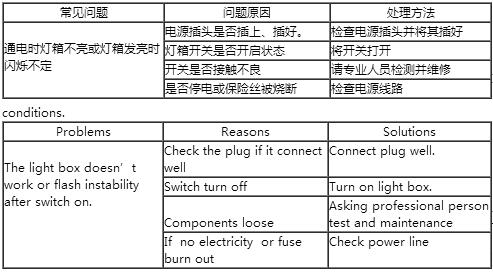

四：常见问题的解决方法（Common problems and solutions）
若使用本产品时出现异常情况，请参照下表情况排除处理。
If the light box was Abnormality, Please refer to the table exclude processing
conditions.
五：警告、注意（Warning! Attention!）
Fragile Keep dry Open with professional guidance
产品在运输、安装途中，尽量防止激烈碰撞，以防损坏LED灯、亚克力等部件，
本产品不防水。请勿将该产品暴露在滴水，雨淋或潮湿的地方。
为防止触电危险，没有一定相关经验的操作人员，不要随意开拆、维修灯箱。
Product during transportation, installation way, try to prevent collisions, LED lamp, acrylic etc
This product not waterproof. Do not be exposed product rain or damp places
To prevent to get an electric shock risk, no certain related experience,not opening, maintenance
六：产品认证（Certifications）
我们的产品电源通过CE、UL、SAA等认证，可以放心使用
Our product power has pass CE、UL、SAA and etc certification, enjoy your using!
